Tire Bead Wire Grommet Forming Winding Machine Motorcycle Tire Bead Wire Extrusion Making Line
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Description
-
WC-1500 Horizontal Bias Fabric Cutting Machine
Application: This machine is mainly used for cutting the rubber coated cord, canvas, cloth, fine cloth after friction into specific width and angle. After cut, the canvas (curtain) fabric is turn up after connection by hand, for later forming use.
Structure Features: This machine is mainly composed of let-off device, feed devices and fixed-length cutting device. With adjustment by the encoder, it can set the angle of cut cloth, with adjustment of servo motor, it can set the width of cut cloth. Cutting number adjustment range is big, wire cutting stroke is adaptable to (curtain) fabric.

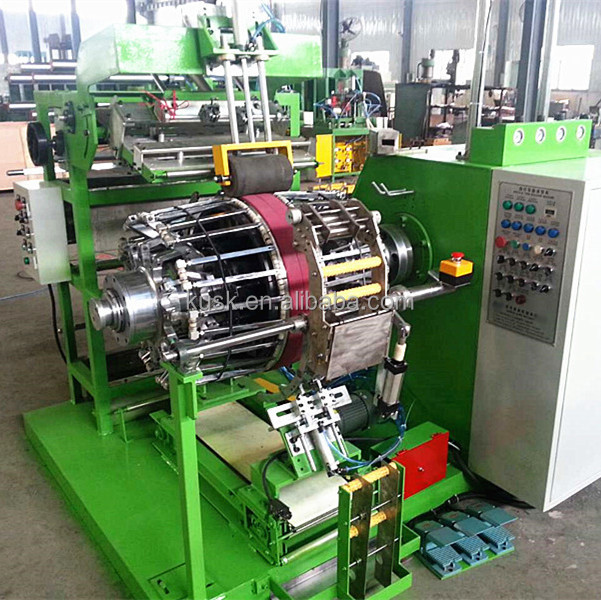

1. Automatic control the tread length, cutting and building function
2. Tread centering function, avoid off center building
3. Tread stretching system, make tread have some lension with tire casing, stable tread building
4. Mechanism or electricity circumference measurement
5. With safe and lifting device, safe operation, reliable convenient
paremeter
Size of tire Motorcycle tyre Nylon cord 8"-18" Cord fabric roll diameter (max) 400mm Inner cloth roll diameter (max) 300mm Revolution of drum 35-120r/min Main drive motor 2.2kw Ply servicer motor 1/2HPx4P1/20each ply Compressed air 5-7KG/CM^2 Under stitcher motor 0.75KW Overall dimension 2300L*2200W*2050H Building speed 2PLY building 500pcs/8hr
Characters:
1. Easy-handling and handling safely
2. Advanced design
3. Almost full automatic control
4 .Equally heat and good heat distributions
5. Durable and reliable
6. Automatic and Efficient
7. Pneumatic, energy-saving and Labor-saving
8. Advanced design, one people can handle it
....
